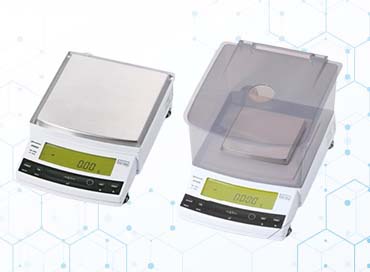

Laboratory Balances
Shimadzu
UP Y Series
| Series | Y Series (Small Pan Model with 0.001 g Minimum Display Value) |
||||
|---|---|---|---|---|---|
| Model | UP223Y | UP423Y | UP623Y | UP823Y | UP1023Y |
| Capacity | 220 g | 420 g | 620 g | 820 g | 1020 g |
| Minimum Display | 0.001 g | ||||
| External Calibration Weight Range for Span Calibration | 100 to 220 g | 100 to 420 g | 100 to 620 g | 400 to 820 g | 500 to 1020 g |
| Repeatability (at Weighing Capacity) | ≤ 0.001 g | ||||
| Linearity | ± 0.002 g | ± 0.003 g | |||
| Response Time (*1) | Approx. 1 sec. | ||||
| Sensitivity Stability Against Temperature Range | ± 3 ppm/°C (10 to 30°C) | ||||
| Pan Size | Approx. 108 × 105 mm | ||||
| Weight | Approx. 2.7 kg | ||||
